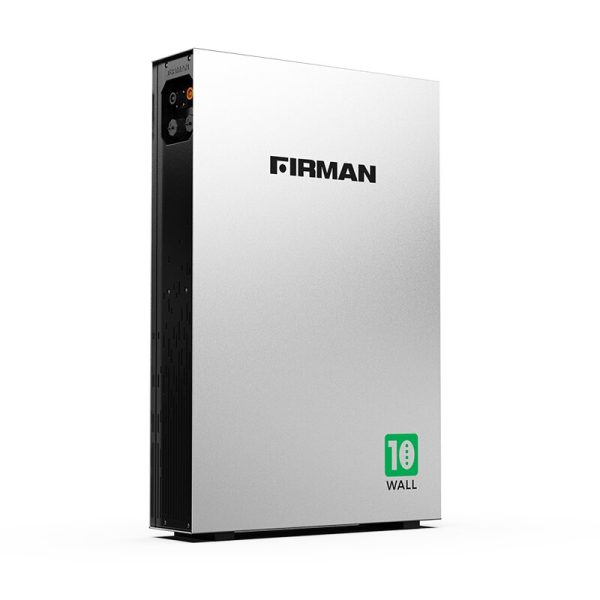

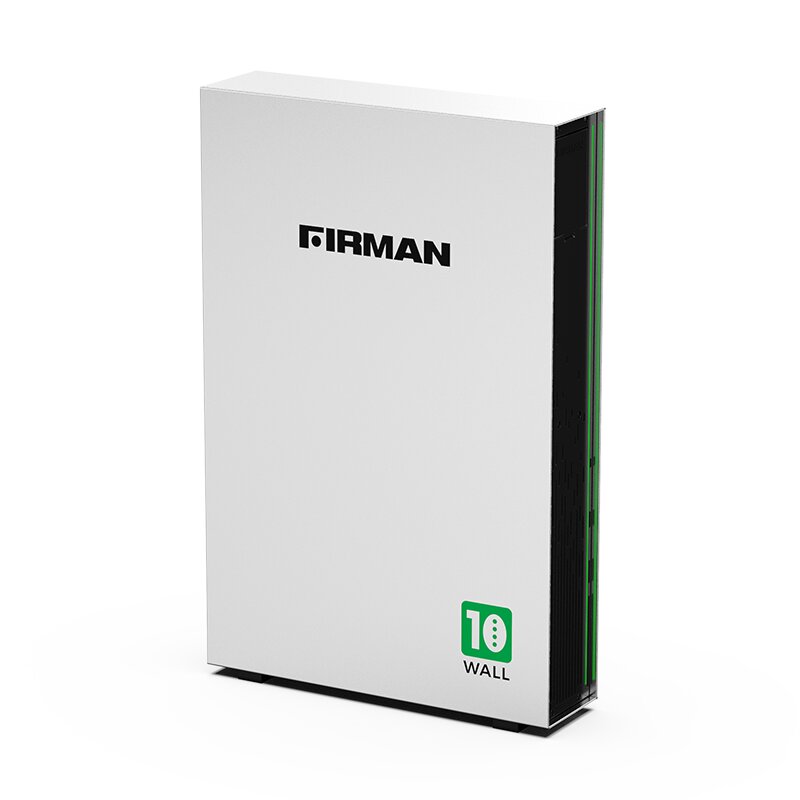

The Firman 10WALL 10kWh Lithium Battery (B5120001) – a state-of-the-art energy storage solution designed to elevate your power experience. Combining high capacity, exceptional longevity, and unparalleled design, the 10WALL sets a new standard in home energy storage systems. Engineered with Grade A top lithium battery cells, it offers a robust 10240Wh capacity, ensuring that your home remains powered even during extended outages.
Introducing the 10WALL Firman 10kWh Lithium Battery – a cutting-edge energy storage solution. With Grade A lithium battery cells, it offers a robust 10240Wh capacity and a lifespan of up to 15 years. It is designed for flexible installation, it can be wall-mounted or floor-standing, saving space while providing reliable power. With its sleek luxury design and IP65 protection, the 10WALL seamlessly combines functionality and aesthetics, making it the ideal choice for modern homes.
Firman 10WALL 10kWh Lithium Ion Battery (B5120001):
- Model No: B5120001
- Battery Type: LiFePO4
- Dimensions (H×W×D) mm: 865×560×160
- Weight: 98 Kg
- Warranty: 6 Years
- Parallel Support: Max. 6 Sets (61.44kWh)
- Series Support: Not Support
- Certifications: IEC62619/UN38.3/CE
- Environmental: RoHS Directive 2011/65/EU
- Forming Method: 2P16S
- Nominal Capacity: 200Ah
- Rate Voltage: 51.2V
- Nominal Energy: 10240Wh
- Charging Voltage: 55.2-57.6V
- End of Discharge Voltage: 44.8V
- Max. Charging Current: 150A
- Max. Discharge Current: 150A
- Communication Interface: RS485, CAN, Bluetooth (Option)
- APP: Remote Monitoring
- Internal Resistance: <15mΩ
- Heat Dissipation Methods: Natural Cooling
- Cycle Life: >6000, 25°C, 0.5C, 90% DOD, 70% EOL
- Mounting Options: Floor or Wall Mount
- Protection: Over Voltage, Low Voltage. Over Current, Over Temperature, Low Temperature, Short Circuit
- Operation Humidity: 0-95% RH (No Condensing)
- Operating Temperature: Standard Product: Charge: 0-+55°C: Discharge: -20-+55°C With Optional Heater: Charge / Discharge: -30~+55°C
- Storage Conditions: -10°C to 60°C
- Maximum Elevation: 3000m
- Ingress Rating: IP65
- Enclosure Type: NEMA 3R
- Noise Level @ 1m: <50dB(A)
Weight | 98 kg |
---|---|
Dimensions | 56.9 × 16.0 × 86.5 cm |
