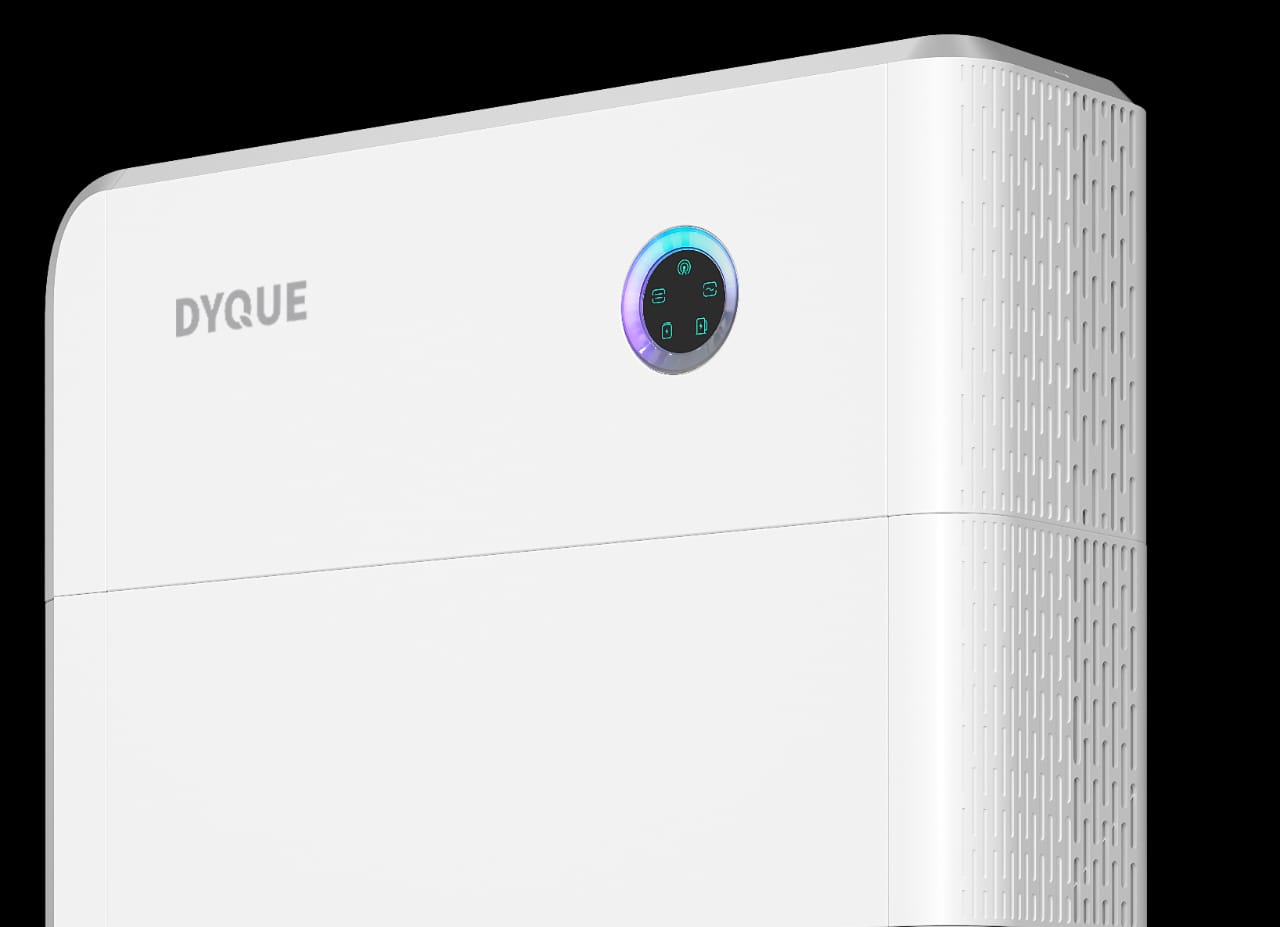

Dyque Premium Power Wall (D510): 5kVA Inverter + 16kWh Lithium Ion Battery + 6,600W Solar Panel

Specifications:

• Package: This product contains both the 5kW Inverter and 16kWh Lithium Ion Battery together in a single package.
• Battery: This product is all-in-one and contains 2 units of stackable 8kWh lithium ion batteries making a total of 16kWh battery storage  (8kWh x2)
• Solar Panels: 12 units of 550W Jinko Premium High Yield Mono Solar panels (6,600W total) for off-grid charging
• Mobile App to monitor and control
• Rated for 10,000+ Cycles (to 80%)
• Depth of Discharge (DoD) - 90%
• IP66 dustproof & waterproof (indoor /outdoor)
• 10 year Manufacturer's Warranty (5 years replacement, 5 years repair)

DC Input (from PV):

MPPT voltage range(V): 50~550 | 160~1000
No. of MPP. trackers: 2 | 2~4
No. of PV strings per MPPT: 1
Max. input current per MPPT: 16 A

AC Output (on-grid):

Nominal output power(W): 3000~6000 | 5000~25000
Nominal output voltage(V): 220/230/240 | 380/400

Efficiency:

Max. efficiency: 98.0% | 98.5%

No. of modules per controller: 1 ~ 6 pcs

Cooling: Natural | Smart
Ingress protection rating: IP66

DC Output:

Max. charging power(kW): 12.5 | 25
Output voltage range(V): 150500, 1501000

Environment:

Cooling: Smart air cooling
Ingress protection rating: IP66

Battery:

- Battery type: LiFePO4
- Total energy capacity (kWh): 5.38 / 8.06
- Max. charge/discharge power (W): 2500 / 4000

- Cooling: Natural | Smart
- Ingress protection rating: IP66
- Installation method: Floor standing / Wall-mounted

Load Estimate (5000W):

• 2 units - 1hp AC,
• 1 unit - Microwave,
• 1 unit - Kettle,
• 1 unit - Washing Machine,
• 1 unit - Refrigerator,
• 1 unit - Deep Freezer,
• 2 units -Television,
• 5 units -Laptop,
• 1 unit - Starlink Internet Router and
• 30 units - lights
